Dual Stand For Two Wheelers

An assembly two stands presently in use for two wheeler. Side stand is assembled with center stand as and when center stand facility is needed.

Problem

  • The available two wheelers in the market have a separate solution/fixtures for side and centre stands, even when the frequency of using the centre stand is drastically low.
  • Only availability of side stand in some bikes, which limits its functionality during repair.
  • Weight reduction limitation without any compromise with functionality or safety.

Solution

  • Combined stand reduces the 3 leg stand assembly to 2 legs only.
  • No compromise in functionality or Safety.
  • Weight reduction.
  • Present system can easily be replaced by combined stand i.e ease of application.
  • Material reduction as legs are reduced.
  • Overall component reduction.

Additional Information

Working:

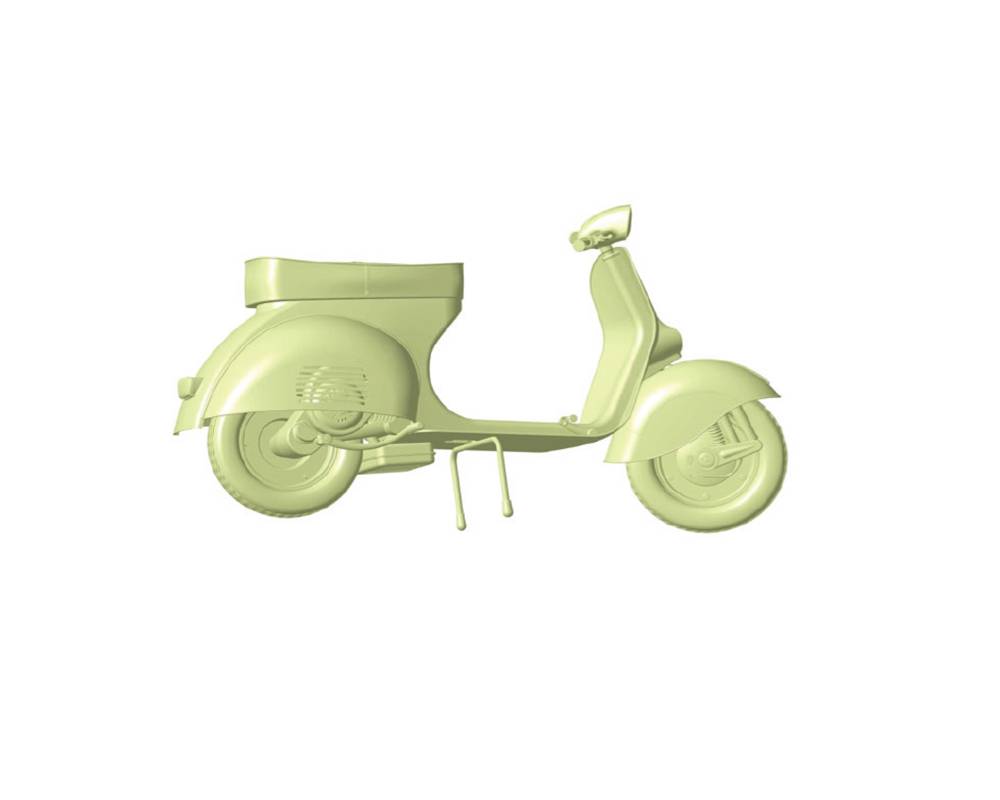

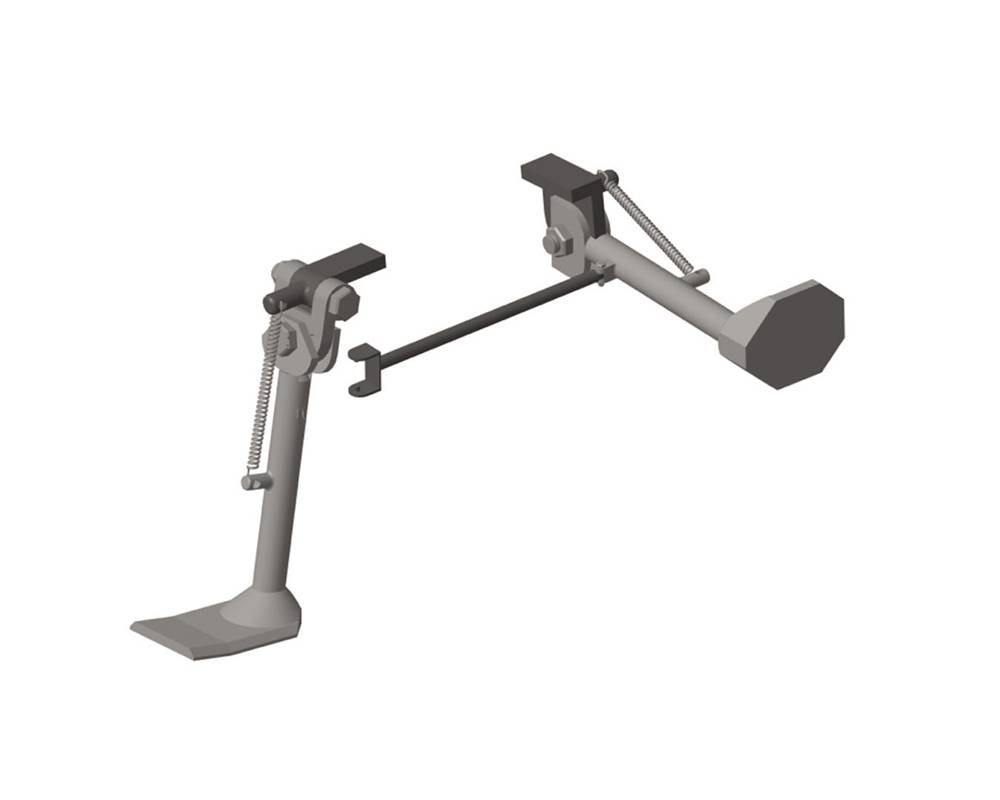

  • When side stand is needed as usual the user can easily slide down the side stand.
  • When centre stand is needed push the side stand inside towards the other stand with your feet until the link is hooked up.

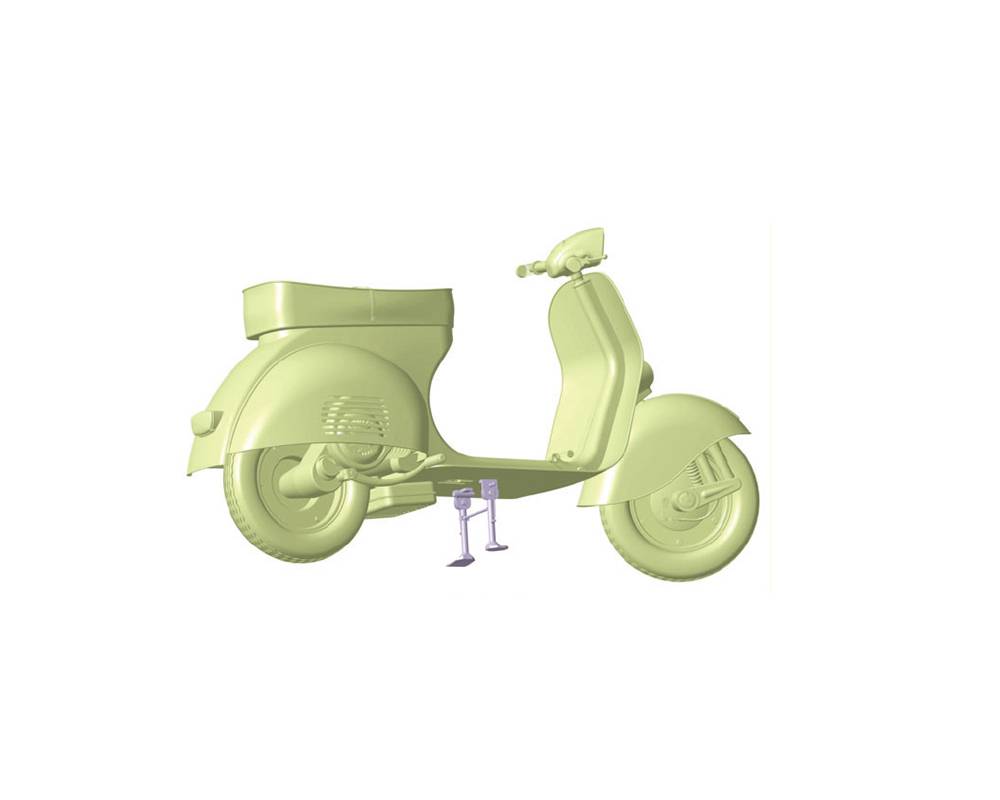

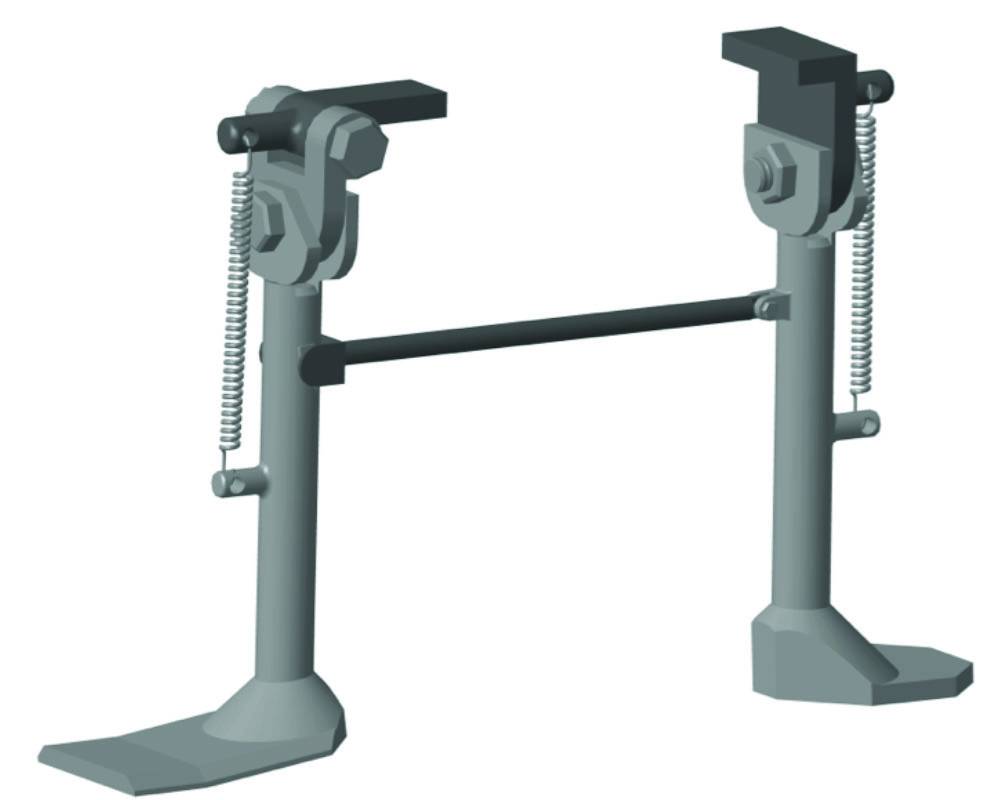

  • As both the legs join, the assembly can be used as a centre stand.
  • When the two wheeler is again dragged on its wheels,due to the pull of the side stand the link detaches automatically.
