Wing Mirror/Side Window Wiper

Integrated, retrofit wiping system for side windows and wing mirrors in automobiles.

Problem

  • Low/ partial visibility of the outside field on roads through the wing mirror and side window view under unfavorable weather conditions.
  • Hesitancy while changing lanes, overtaking, side parking, reverse maneuvering, etc.

Solution

  • 100% clear and unobstructed view improving the overall drive quality.
  • An integrated retrofit wiping solutions that clears away any foreign objects like rainwater, fog, smoke, dirt, etc. on either of the two surfaces.

Additional Information

Abstract:

Integrated, retrofit wiping system for side windows and wing mirrors in automobiles.

The invention is directed towards solving the ‘social issue’ of road accidents caused due to low/partial visibility in unfavorable driving conditions like heavy rain, foggy weather, steep curvy lanes at high altitudes, etc.

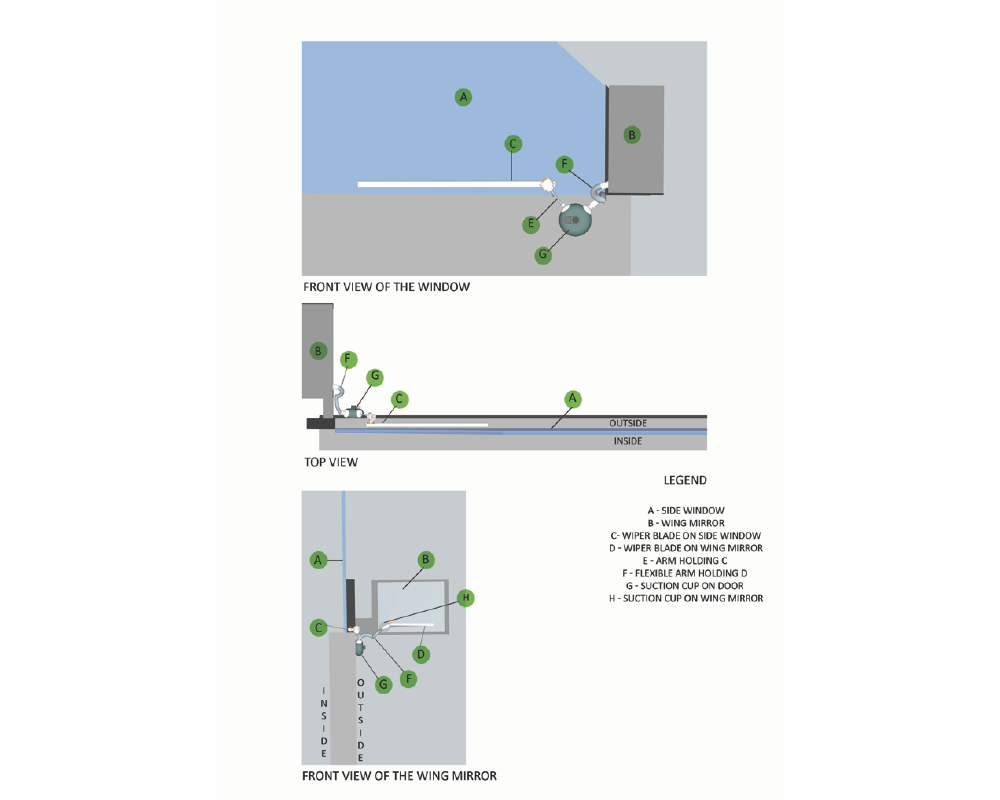

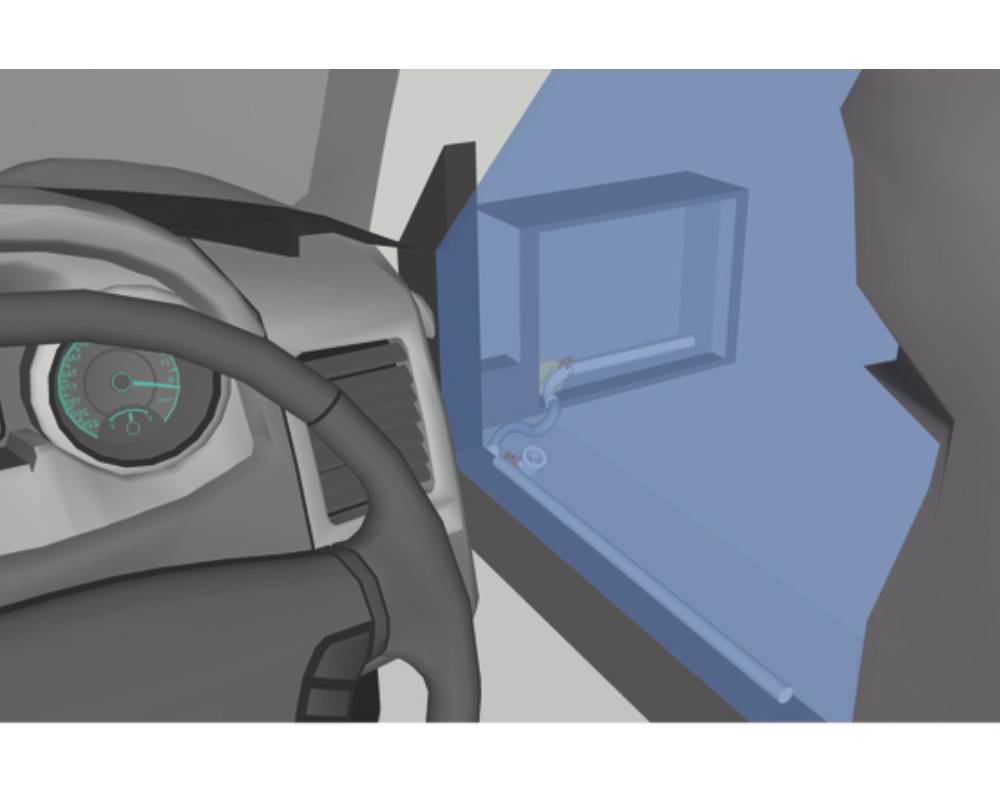

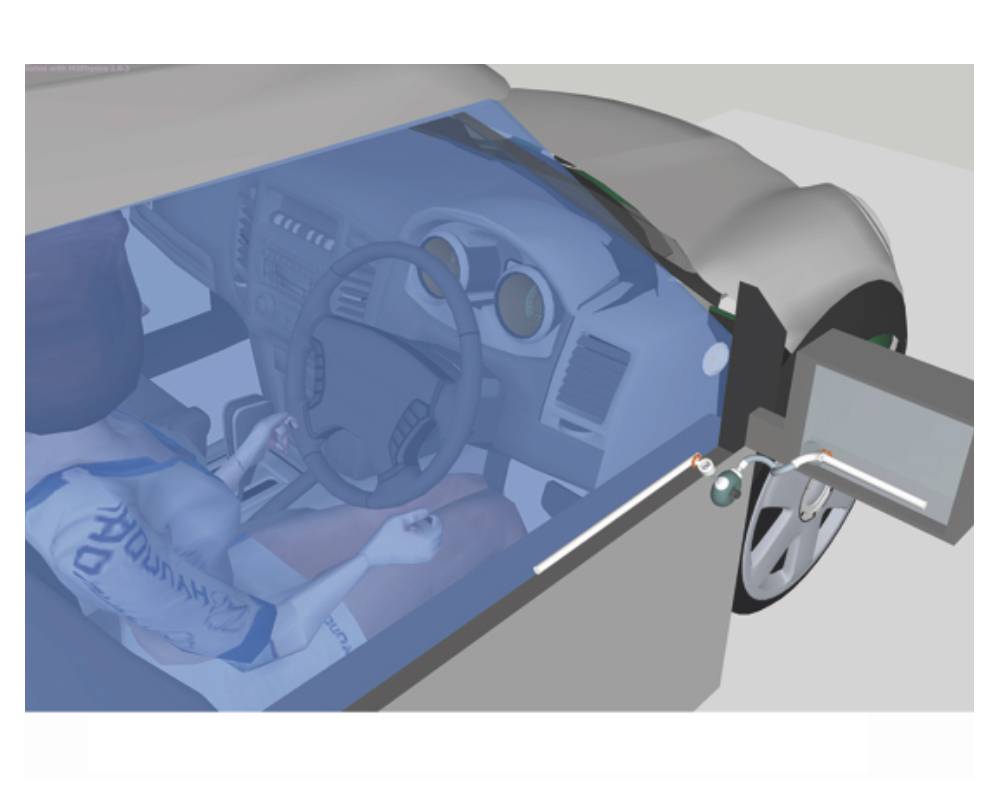

the proposed present invention is a newly devised system for wiping clean the surfaces in the field of view of both outside mirrors. These surfaces include parts of the external surface of side windows and side-view mirrors (outside the car cabin). The device is an integrated system of components/parts so connected that a ‘back and forth’ wiping action is caused by mechanical arms on the surfaces. The device is an independent, retrofit external assembly of parts that can be easily installed and uninstalled from the outside of the car and does not create any hindrance in opening/closing of door nor lowering of window panes.
